18W 100% synchronous control RGB color changing pool light bulb

Short Description:


Product Detail

Product Tags

color changing pool light bulb Core features:
1. Same diameter as the traditional PAR56, can totally match various PAR56 niches
2. VDE standard rubber thread with a length of 1.5M
3. RGB synchronous control design, 2-wire connection, completely synchronous lighting change, AC12V, 50/60 Hz
4. Ultra-thin design, IP68 structure waterproof
5. Passed the Temperature rising test

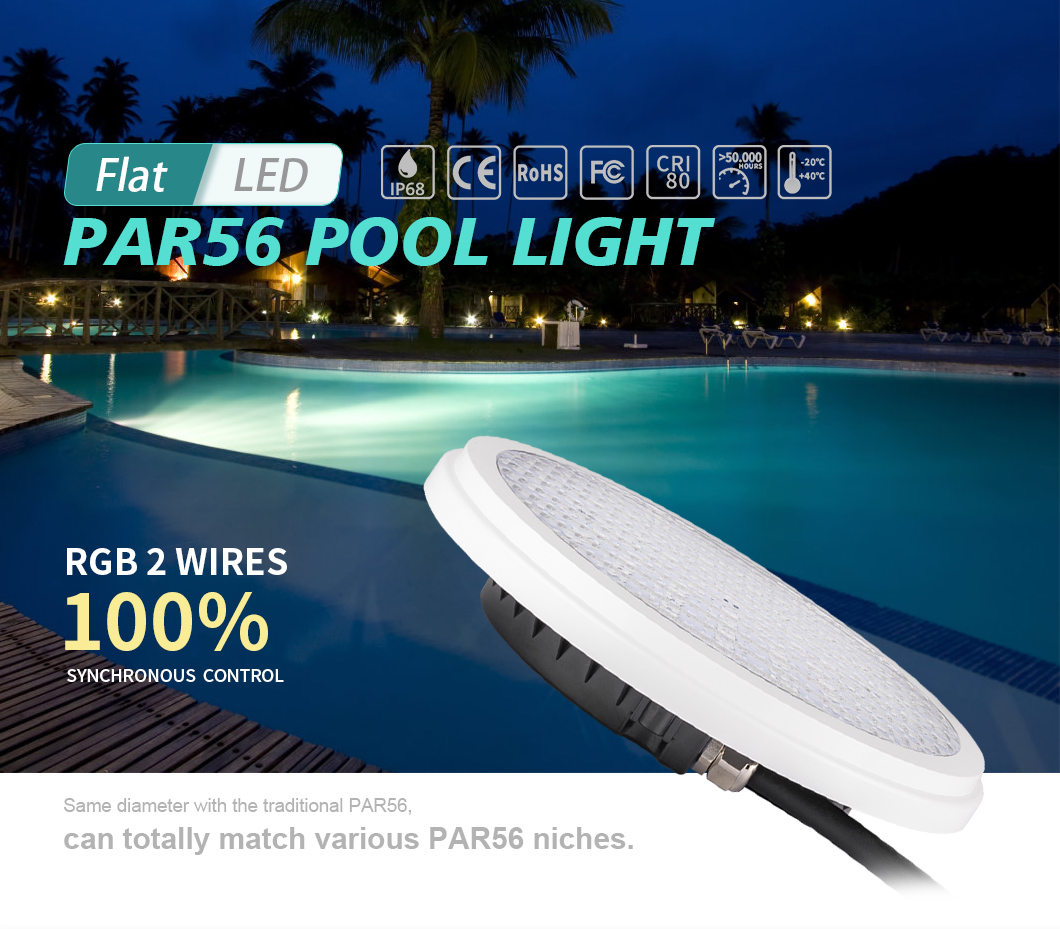

HG-P56-18W-A4-T  (1)

Compatible Recessed Pool Lights
PAR56 Pool Light Models

Wall-Mount Pool Lights

Product Type: Adjustable PAR56 Replacement Light

Compatible Pool Types:

Concrete Pools

Vinyl-Lined Pools

Fiberglass Pools

Key Features: Compatible with various pool materials (concrete, vinyl-lined, fiberglass), as a replacement or compatible option for original PAR56 pool lights.

a4 匹配3  拷贝_副本

color changing pool light bulb Parameters:

Model

HG-P56-18W-A4-T

Electrical

Voltage

AC12V

Current

2050ma

HZ

50/60HZ

Wattage

18W±10%

Optical

LED chip

SMD5050-RGBLED

LED(PCS)

105PCS

wavelength

R:620-630nm

G:515-525nm

B:460-470nm

Lumen

520LM±10%

Installation and Compatibility
Compatible with major brands
With the same diameter as traditional PAR56 lamps, it’s compatible with all PAR56 fixtures.
It replaces existing bulbs from brands such as Hayward (ColorLogic), Pentair (IntelliBrite), and Jandy (WaterColors).

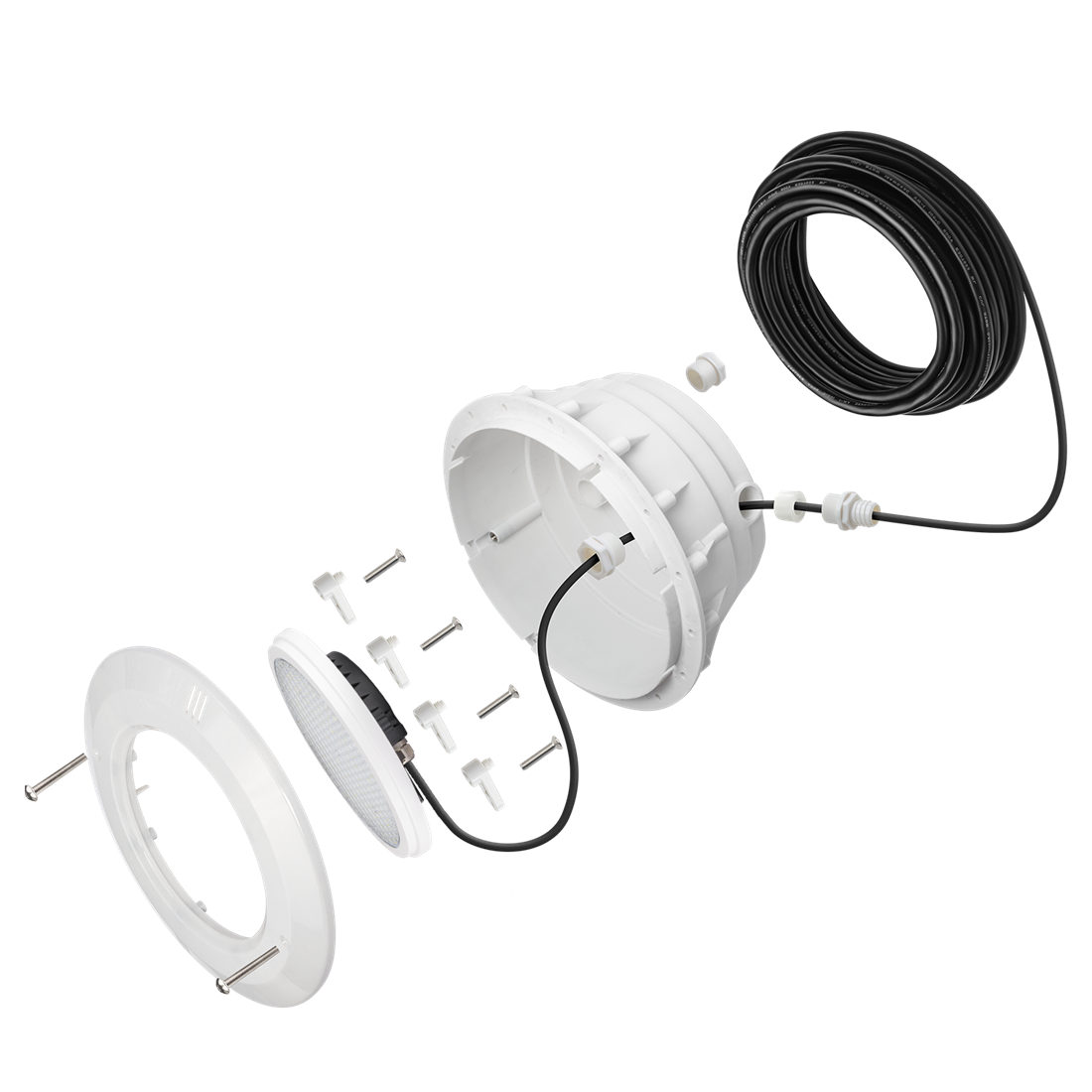

6016+a4 _副本

DIY Installation Guide
Turn off the power: Remove the old bulb → Replace with the new one → Reset the waterproof seal → Power on and test.
Non-low-voltage models require professional electrician service to avoid the risk of electric shock.

The following diagram shows an underwater installation in a film tank:

a4+6016v 安装0095_副本



Cautions:
1. Please cut the power off before installation.
2. Fixture shall be installed by a licensed or certified electrician, wiring shall conform to the IEE electrical standard or national standard;
3. Need to do well of waterproofing and insulation before the light connects to the power lines.
4. Underwater use ONLY! The lamp must be completely submerged underwater.
5. Forbid pulling it
