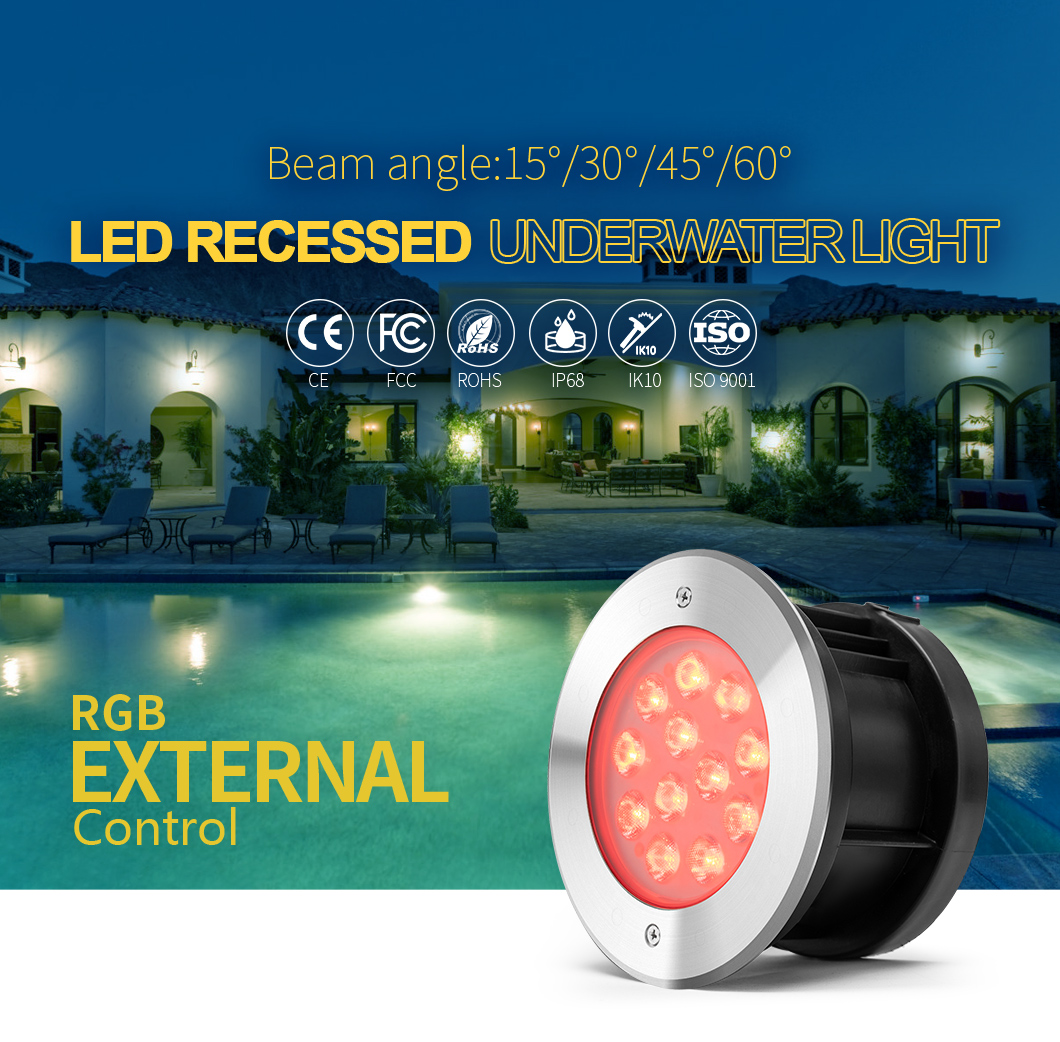

18W External control waterproof led lights outdoor
waterproof led lights outdoor
1. Supports RGB or RGBW color mixing, enabling smooth gradients, transitions, and fixed colors across millions of colors via the controller, creating dreamlike scenes.
2. Supports DMX512 protocol, wireless remote control, mobile app control, or synchronization with music, achieving precise and complex programming control for a perfect blend of light shows and fountain forms.
3. Capable of long-term submersion at a certain depth (e.g., 0.5 to 3 meters underwater), completely preventing water intrusion.
4. Constructed from high-strength engineering plastics, resistant to chloride ions and chemical corrosion in water, with strong weather resistance.
waterproof led lights outdoor Parameters：
|
Model |
HG-UL-18W-SMD-R-RGB-X |
|||
|
Electrical |
Voltage |
DC24V |
||
|
Current |
750ma |
|||
|
Wattage |
17W±10% |
|||
|
Optical |

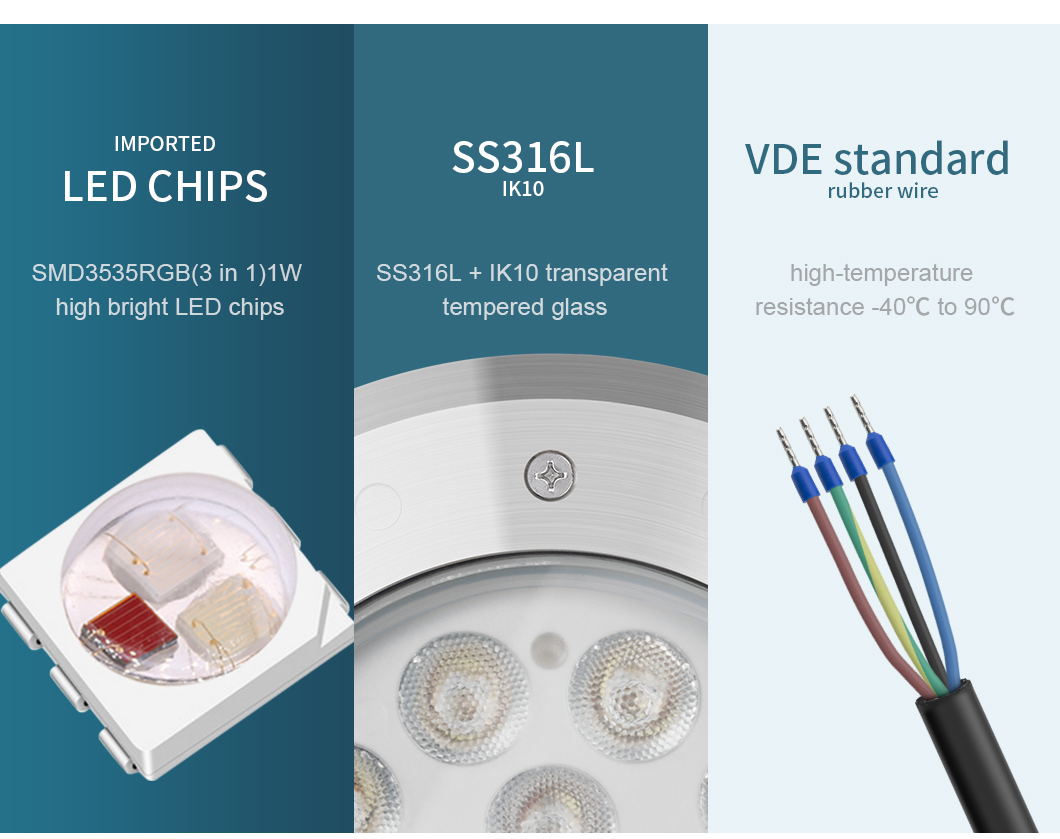

LED chip |
SMD3535RGB(3 in 1)3WLED |
||
|
LED (PCS) |
12PCS |
|||
|
Wave length |
R：620-630nm |
G：515-525nm |
B：460-470nm |
|
|
LUMEN |
600LM±10％ |
|||

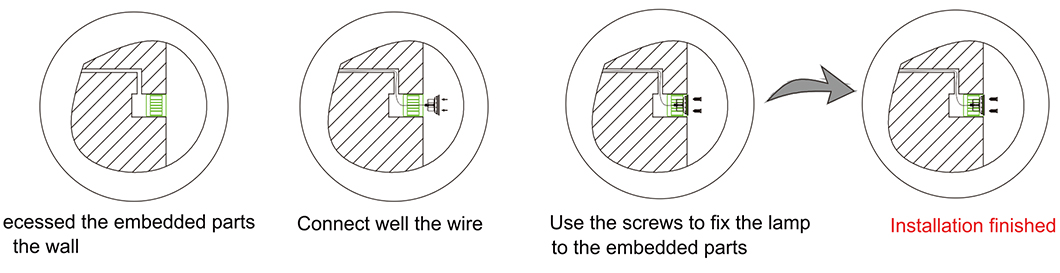

Design and Installation Features
Compact Size:
The compact design of the luminaires allows for easy concealment near fountain nozzles or within pool structures, minimizing impact on the daytime landscape.

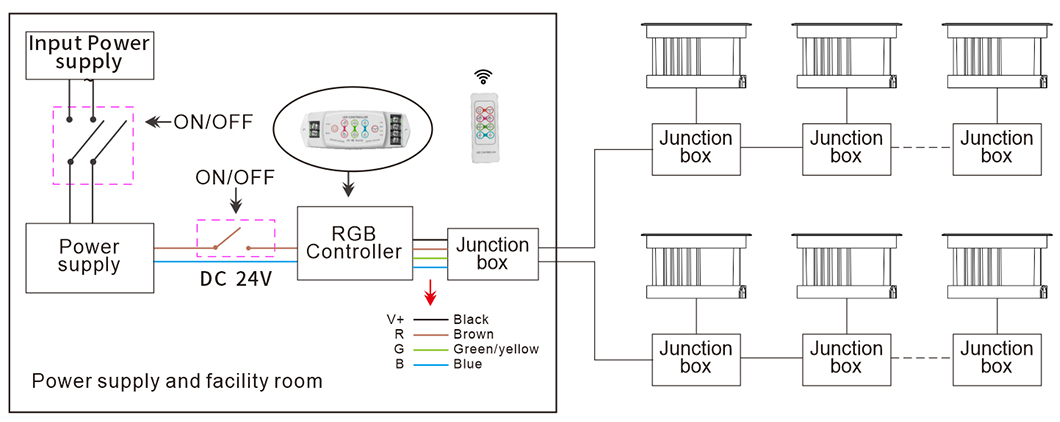

Low-Voltage Wiring Requirements:
While a transformer is required, the installation of low-voltage lines is less demanding than high-voltage lines, reducing installation complexity and cost. Note that cable diameter needs careful calculation to ensure sufficient brightness for distant luminaires.
Transformer Required:
This is a necessary characteristic of low-voltage systems. The AC mains power (220V/110V) needs to be converted to a safe 12V/24V DC power supply using a waterproof transformer. The transformer’s power rating must be selected based on the total power of the connected luminaires, with a certain margin of safety.
