18W RGBW IP68 waterproof swimming pool lights
IP68 waterproof swimming pool lights Features
1. 316 stainless steel screws, PC/ABS UV-resistant housing, tempered glass lens
2. Safe low voltage (12V/24V) with leakage protection
3. Brand-name chip, 50,000+ hour lifespan, 100-200 lumens/watt efficiency
4. Beam angle: 90°-120° (area lighting), 45° (focused lighting)
5. RGBW (16 million colors), tunable white (2700K-6500K), or fixed white
IP68 waterproof swimming pool lights Parameters:
| Model | HG-P56-18W-C-RGBW-D2 | ||||
| Electrical | Input Voltage | AC12V | |||
| Input current | 1560ma | ||||
| HZ | 50/60Hz | ||||
| Wattage | 17W±10％ | ||||
| Optical | LED chip | SMD5050-RGBW LED chips | |||
| LED quantity | 84PCS | ||||
| Wavelength/CCT | R:620-630nm | G:515-525nm | B:460-470nm | W:3000K±10％ | |
| Light lumen | 130LM±10% | 300LM±10% | 80LM±10% | 450LM±10% | |
IP68 waterproof swimming pool lights Dimension:

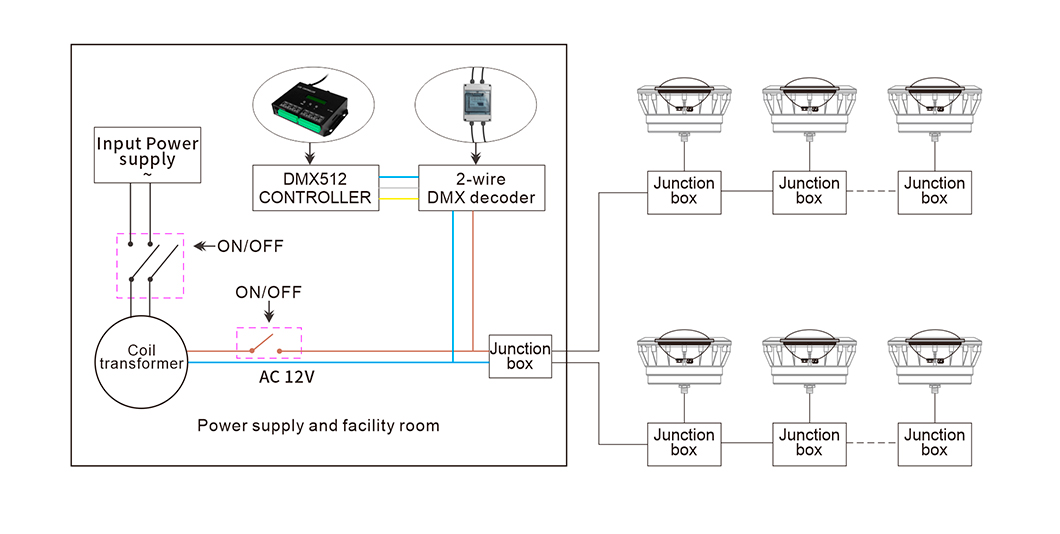

Installation Tips
Step 1: Ensure the circuit breaker is de-energized.
Step 2: Use an IP68 waterproof junction box for cable connections.
Step 3: Seal the cable entry (silicone or epoxy).
Step 4: Perform a water leak test after installation (air pressure test recommended).
IP68 waterproof swimming pool lights Types
Recessed Lights:
Requires a pre-installed mounting cavity during pool construction.
Compatible with major brands (e.g., Pentair and Hayward).
Wall-Mounted Lights:
Attaches to the pool wall with stainless steel screws.
Suitable for renovations or vinyl-lined pools.
Magnetic Lights:
No drilling required, strong magnetic attachment.
Suitable for temporary use or rental properties.
