24W Four-wire external control RGB fountain led lights

Short Description:

1. RGB 3 channels electric design, common external controller, DC24V input power supply；

2. SMD3535 RGB high bright led chip;

3. Beam angle: 15°/30°/45°/60°;

4. 2 Years warranty

Send email to us

Product Detail

Product Tags

fountain led lights Features：

1. RGB 3-channel electric design, common external controller, DC24V input power supply；

2. SMD3535 RGB high-brightness LED chip;

3. Beam angle: 15°/30°/45°/60°;

4. 2 Years warranty

■ Parameters：

Model		HG-FTN-24W-B1-RGB-X
Electrical	Voltage	DC24V
	Current	960ma
	Wattage	23W±10%
Optical	LED chip	SMD3535RGB
	LED (PCS)	18 PCS
	Wave Length	R:620-630nm	G:515-525nm	B:460-470nm
	LUMEN	800LM±10％

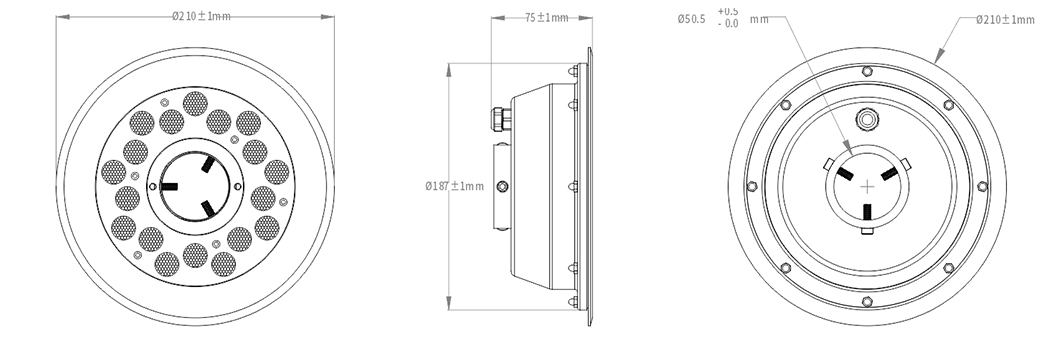

Structure size：

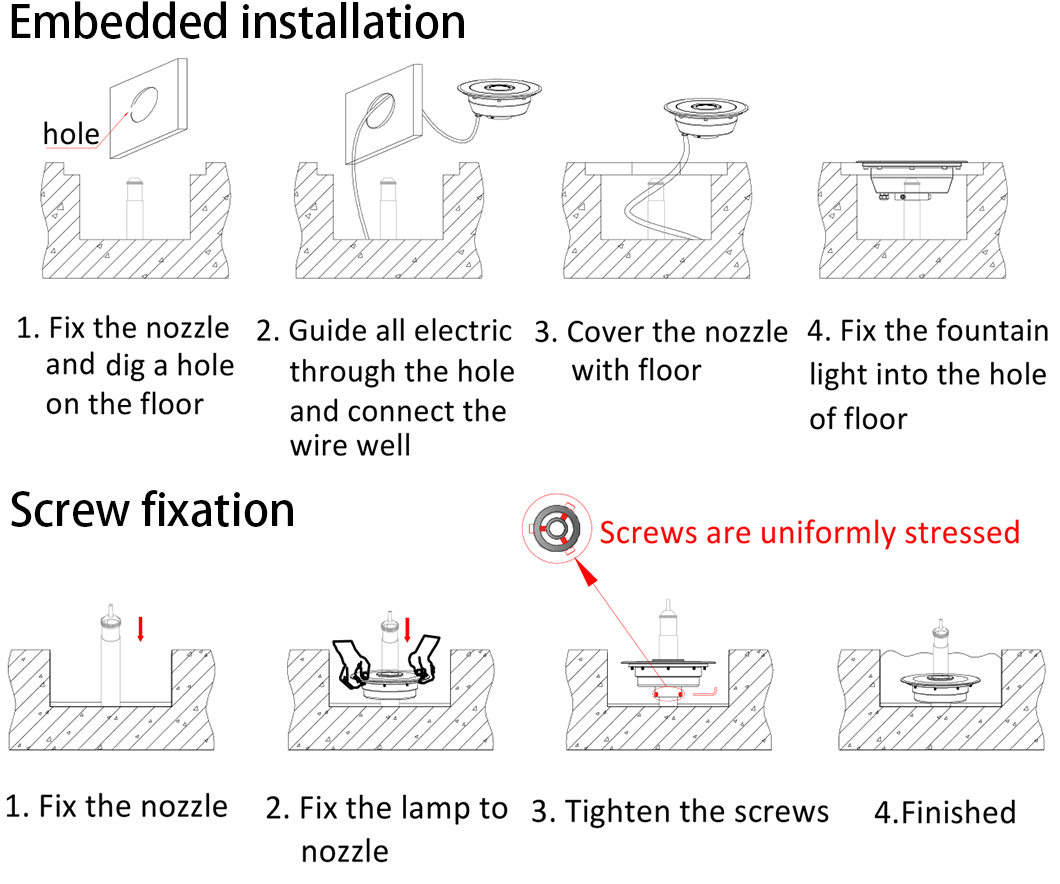

fountain led lights installation：

1. Preparation and Planning
2. Lighting Arrangement and Fixtures
3. Wiring and Sealing (The Most Critical Step)
4. Power-On Testing and Final Adjustments
