36W DC24V white outdoor fountain lights
outdoor fountain lights Features：
1. SS316L body material, surface ring thickness: 3 mm
2. Nozzle diameter max: 50mm
3.IP68 structure waterproof
4. SMD3030 CREE chip, white/warm white/red/blue/red etc
5. Beam angle: 15°/30°/45°/60°
6.NO AC voltage, DC24V stable power supply ONLY
outdoor fountain lights Parameters：
|
Model |
HG-FTN-36W-B1-RGB-X |
|||
|
Electrical |
Voltage |
DC24V |
||
|
Current |
1460ma |
|||
|
Wattage |
35W±10% |
|||
|
Optical |
LED chip |
SMD3535RGB |
||
|
LED (PCS) |
18 PCS |
|||
|
Wave Length |
R:620-630nm |
G:515-525nm |
B:460-470nm |
|
|
LUMEN |
1000LM±10％ |
|||

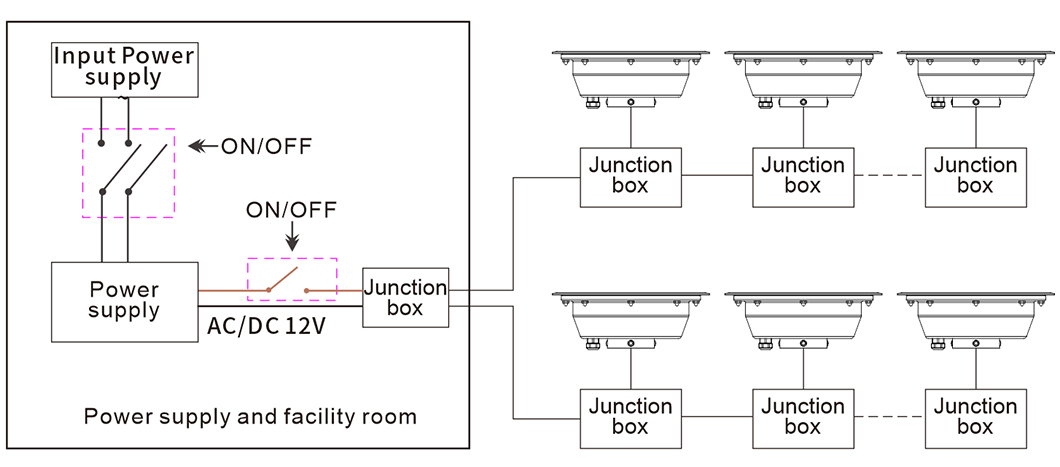

Installation Diagram：
FAQ
1. What IP rating is needed for fountain lights?
Minimum Requirement: IP68 (continuous immersion up to 3 meters)
Recommended for High-Pressure Areas: IP69K (resists direct high-pressure water jets)
Additional Protection: Look for lights with corrosion-resistant seals (EPDM rubber) and 316 stainless steel hardware
2. Can these lights be used in saltwater fountains?
Yes, but requires specific features:
Material: 316 marine-grade stainless steel or titanium
Seals: Chemical-resistant EPDM or Fluorocarbon rubber
Cabling: Marine-grade waterproof connectors with anti-corrosion coating
Maintenance: Monthly freshwater rinse recommended
3. What maintenance is required?
Weekly:
Visual inspection for debris blockage
Check for unusual color variations
Monthly:
Clean lenses with vinegar solution (1:10 ratio)
Inspect cable connections
Annually:
Replace seal rings
Pressure test housing
Verify waterproof connections
4. How many lights do I need for my fountain?
Calculation Guide:
Small Fountain (<3′ diameter): 2-4 lights (10-15W each)
Medium Fountain (3-6′ diameter): 4-8 lights (15-20W each)
Large Fountain (>6′ diameter): 8+ lights (20-36W each)
Pro Tip: Add 20% more lights for complex water patterns or tall water jets
5. Can I control the lights with my phone?
Modern systems offer:
WiFi/Bluetooth Control: iOS/Android apps for color and schedule control
Smart Home Integration: Works with Alexa, Google Assistant, SmartThings
Professional Systems: DMX512 control for complex choreography
Scheduling: Automatic sunrise/sunset timers and holiday themes
6. Why are my lights flickering?
Common Causes:
Voltage Drop: Wire gauge too small for cable length
Loose Connections: Check all waterproof connectors
Water Intrusion: Moisture in connectors or fixtures
Driver Failure: Power supply needs replacement
