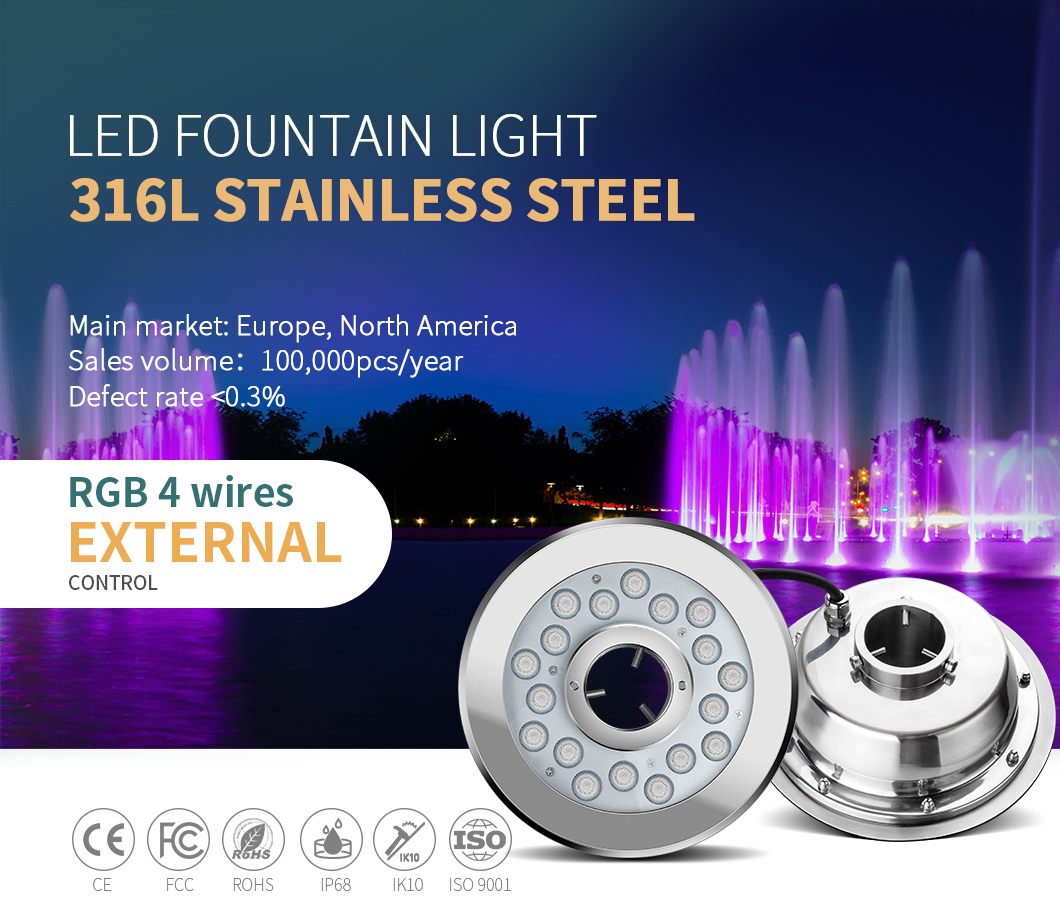

36W External Control fountain led lights underwater

Short Description:


Product Detail

Product Tags

fountain led lights underwater Features:

1. SS316L body material, surface ring thickness: 3 mm

2. Transparent tempered glass, thickness:8.0mm

3. Nozzle diameter max: 50mm

4. VDE rubber cable, cable length: 1M

5. IP68 structure waterproof

6. PCB board with high thermal conductivity, thermal conductivity ≥2.0w/mk.

 HG-FTN-36W-B1-X  (1)

fountain led lights underwater Parameters

Model

HG-FTN-36W-B1-RGB-X

Electrical

Voltage

DC24V

Current

1460ma

Wattage

35W±10%

Optical

LED chip

SMD3535RGB

LED (PCS)

18 PCS

Wave Length

R:620-630nm

G:515-525nm

B:460-470nm

LUMEN

1000LM±10%

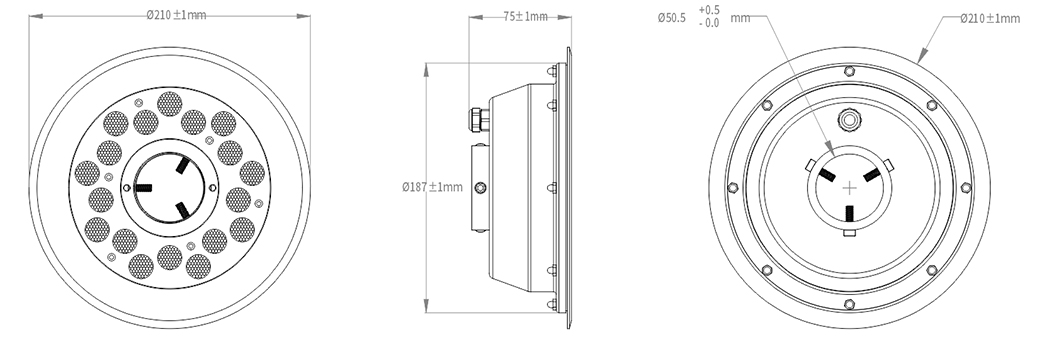

fountain led lights underwater Structure size

HG-FTN-24W-B1-_03

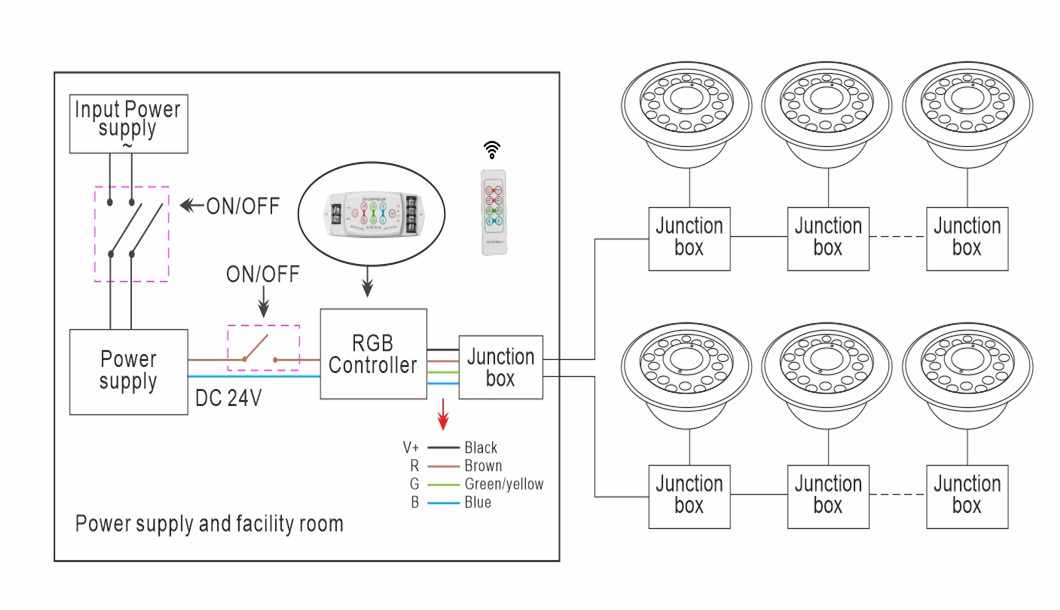

fountain led lights underwater Installation Diagram

喷泉 连接图_副本

HG-FTN-24W-B1-X  (3)
