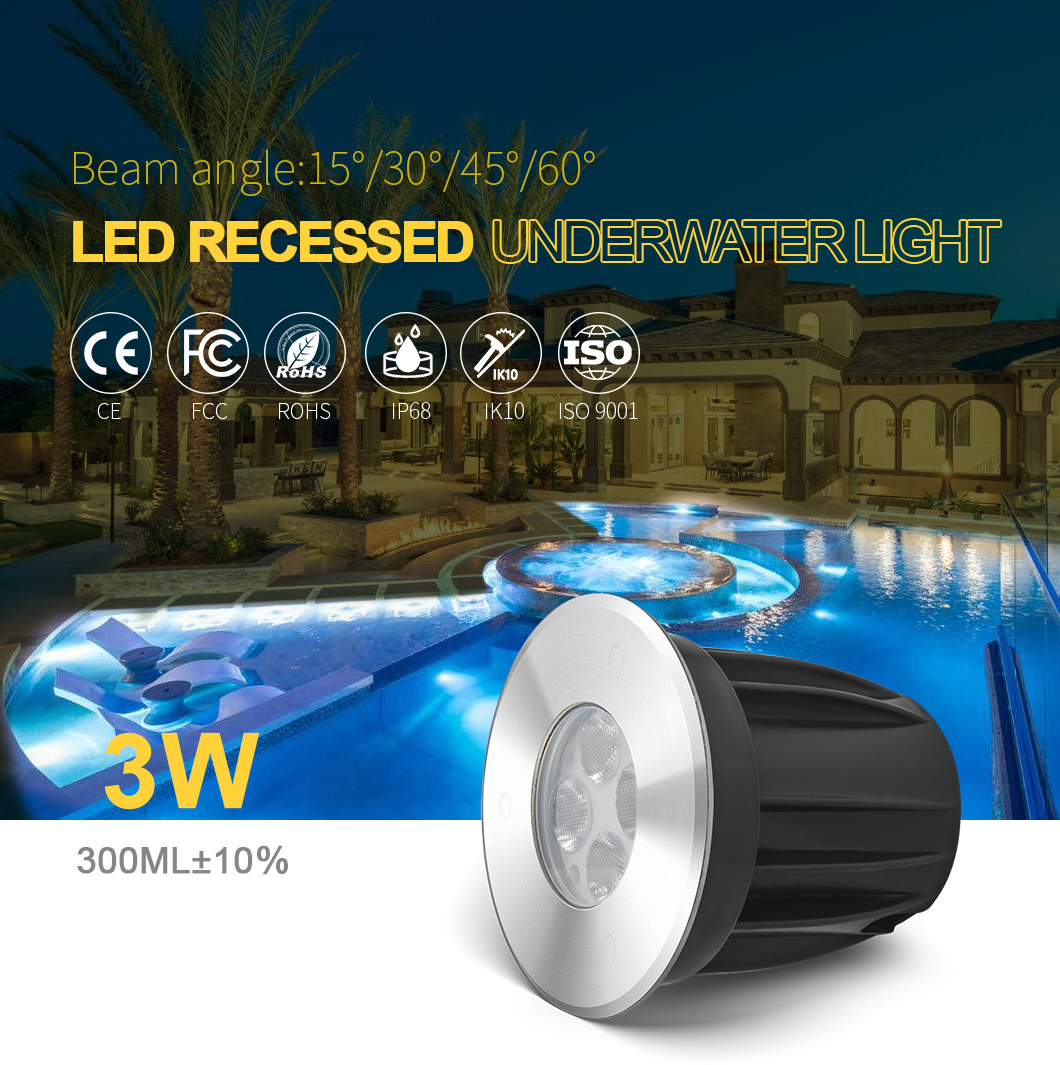

CE RoHS Underwater IP68 CREE 3W LED underwater pool lights
underwater pool lights Features：
1. Recessed installation
2. Constant current driver circuit design, DC24V input power supply
3. SMD3030 CREE LED, white/warm white/red/blue/red, etc.
4. Beam angle:15°/30°/45°/60°
5. 2-year warranty
underwater pool lights Parameters：
|
Model |
HG-UL-3W-R |
|
|
Electrical |
Voltage |
DC24V |
|
Current |
170ma |
|
|
Wattage |
3±1W |
|
|
Optical |
LED chip |
SMD3030LED(CREE) |
|
LED (PCS) |
4PCS |
|
|
CCT |
6500K±10%/4300K±10%/3000K±10% |
|
|
LUMEN |
300LM±10% |
|

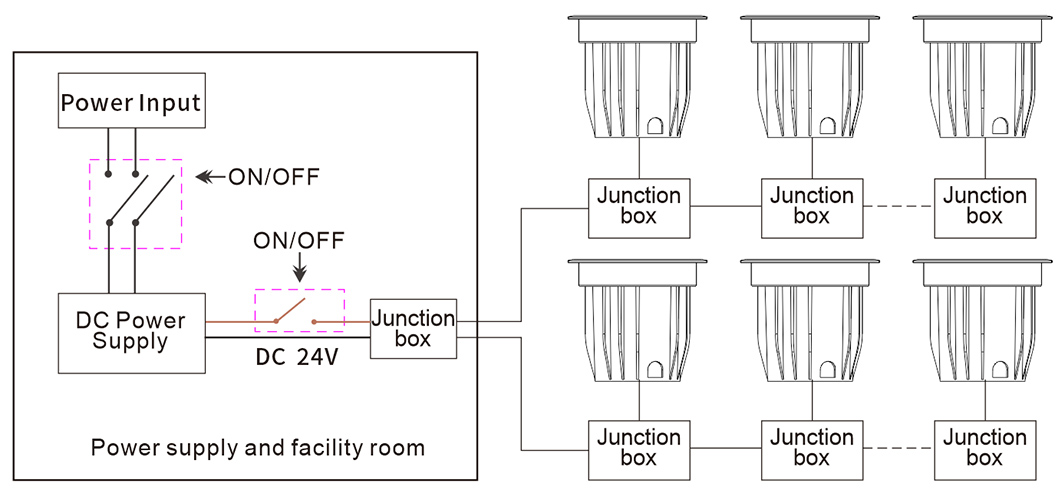

Installation Diagram：

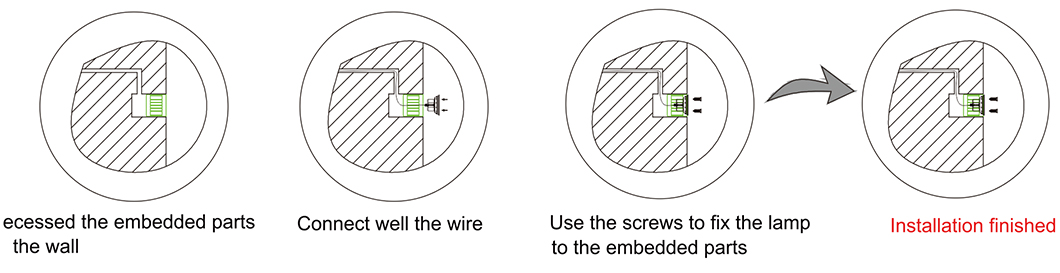

Light fixture installation：
