Integrated Waterproof Technology Vinyl Lined Pool Light

When you choose LED pool light bulbs for your LED vinyl liner pool, you can choose between recessed or wall mounted. Here are two installation methods for vinyl liner pool lights for your reference:
Installation process of vinyl liner pool embedded lights:
Step 1: Pre-embed the light cabin in the steel structure/concrete base
Step 2: Precisely cut the hole after laying the liner (special round knife)
Step 3: Install the waterproof flange (Butyl tape seal)
Step 4: Install a buffer gasket between the lamp body and the liner

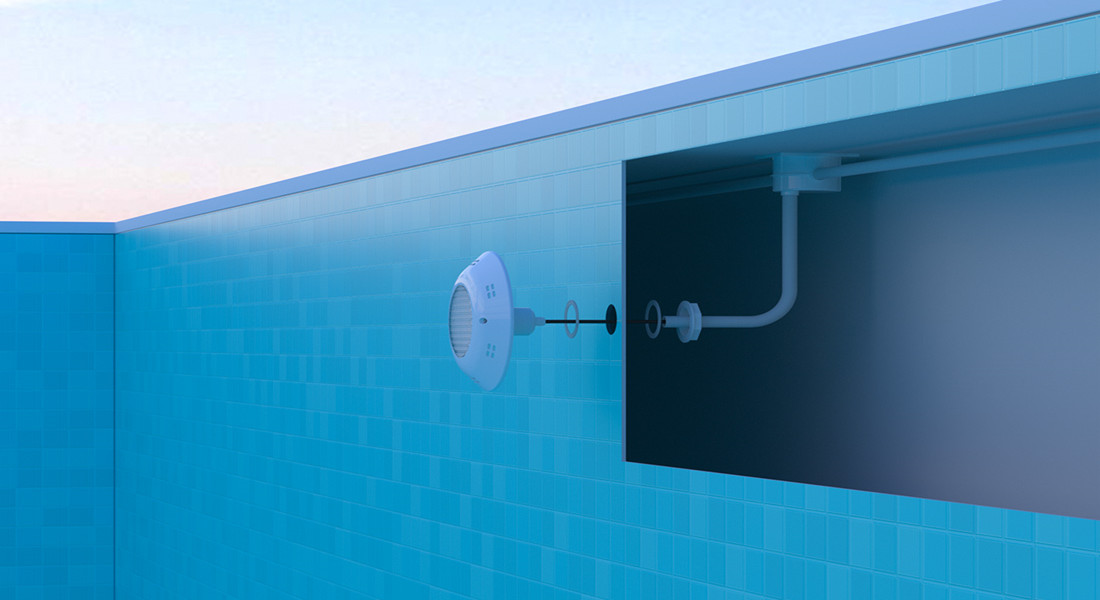

Vinyl liner pool wall-mounted installation process:
Step 1: Positioning mark
Determine the installation height of the vinyl liner pool light
Step 2: Pad hole
Use a special vinyl cutter to make a hole (the hole size is about 2mm smaller than the lamp body), apply a tear-resistant coating (such as PVC glue) on the edge of the cut, and then install an EPDM sealing ring on both sides
Step 3: Fix the bracket
Insert the bracket from the outside of the pool wall, add a silicone gasket between the bolt head and the liner, and then tighten it with a torque wrench
Step 4: Light body installation
Pass the cable through the bracket, reserve 15cm, and then rotate the lamp body 90° clockwise when it is inserted into the bracket Locking
Step 5: Waterproofing
Wrap tape around the cable entrance and inject silicone sealant at the joints

Product selection:
Choose a model designed for vinyl (such as the Hayward ColorLogic Vinyl Liner series)
Power recommendations:
Small pools (<30㎡): 15-20W
Medium pools (30-60㎡): 30-50W
Large pools (>60㎡): multi-lamp distributed installation

FAQ:

Q1: Embedded vs wall-mounted, which is more suitable for vinyl liner?
A: Choose according to the scenario:
Type Applicable situation Notes
Embedded New swimming pool/complete renovation Pre-embedded waterproof light cabin (Niche)
Wall-mounted Existing swimming pool renovation Avoid using metal screws to fix
2. Installation issues
Q2: Do I need to drain the pool water during installation?
A: Wall-mounted: No drainage is required, but the water level must be lowered to 30cm below the installation position
Embedded: Local area (light cabin location) must be drained
3. Product selection
Q3: How to choose LED power?
A: Reference standard:
Small swimming pool (<8m×4m): 15-30W
Medium swimming pool (8-12m×4-6m): 30-50W
Large swimming pool (>12m×6m): 50W or more or multiple lamps
Q4: Must I choose low-voltage (12V/24V) lamps?
A: Yes! Reason:
Vinyl liner pool has no grounding protection, low voltage is safer
